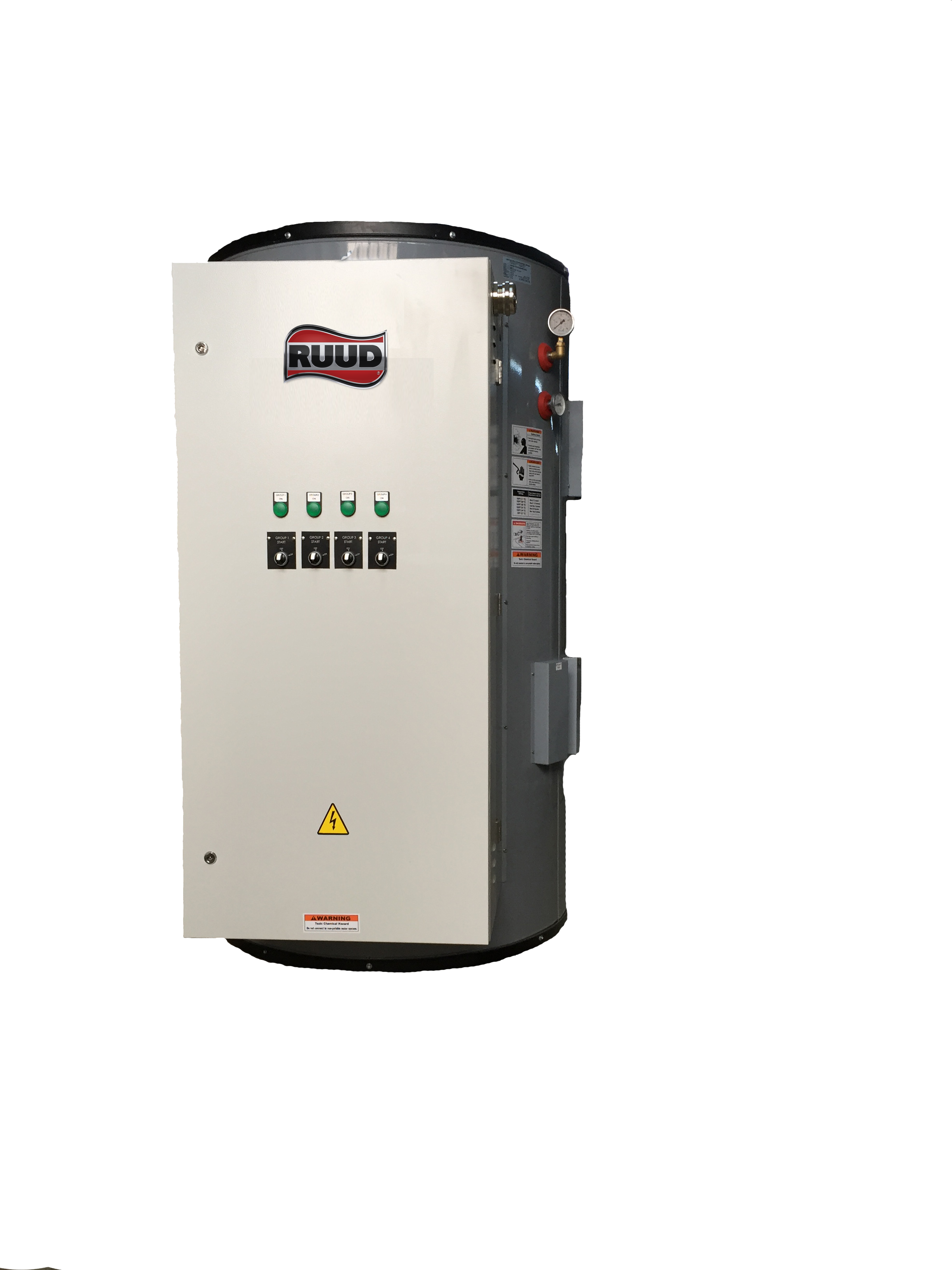

Commercial Electric Water Heaters
Features
- 98% Thermal Efficiency
- System Sentinal™ provides a diagnostic panel with LEDs that correspond to the number, location and status of each element
- Lifeguard™ heating elements to resist corrosion and burnout; separate screw-in type elements feature a stainless steel outer sheath of Incoloy® 840, which surrounds the Nichrome wire filament
- Immersion thermostat
- Long-life ASME tank design of Proprietary steel formulation with high temperature porcelain enamel maximizes corrosion resistance
- Single Panel Control Box with Hinged Door that provides immediate access to all electrical components and elements
- Integral fusing on each element
- Two magnesium anode rods for long life and corrosion resistance
- Full-port, Full-flow factory installed brass drain valve that allows for faster draining and servicing
- Easy Installation & service, Installs close to fixtures, eliminating the wait for hot water
Specifications
- Delivers 90-190° F water
- Water Connections: Hot outlet and cold inlet are 3/4" NPT plastic lined nipples which prevent excessive turbulence of heated water and results in optimum tank draw
- 3 kW through 36 kW
- Elements are Lifeguard™ stainless steel, screw-in type that resist burn out and corrosion
- 12, 20, 30 and 40 gallon capacities, 98% Efficiency
